Reinforcement Learning Basics: Cross Entropy Method(CEM)



In this blog we will take a look at a relatively simple RL method called Cross Entropy method. It is really simple to implement and has a good convergence in simple environments.

1. What is Cross Entropy Method (CEM)?

The main core of CEM is to throw away bad episodes and train on good/elite episodes. Its a model-free, policy-based and on-policy method.

The name comes from the cross-entropy loss used to train the policy. By minimizing the cross-entropy between the current policy’s output and the actions taken in elite episodes, the method encourages the agent to reproduce high-reward behavior. The CE loss function is as follows:

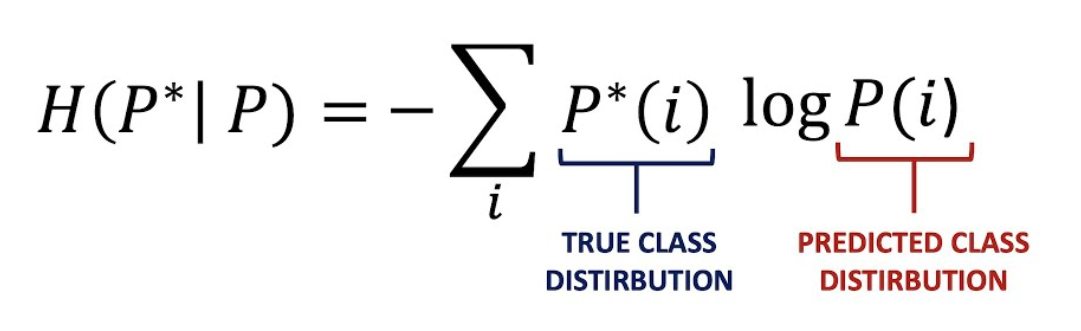

Cross Entropy Loss Function

Basically cross-entropy determines the distance between true probability distribution and predicted probability distribution.

2. The Cartpole Environment

The CartPole-v1 environment is a classic control problem widely used in reinforcement learning research and tutorials. The objective is to balance a pole on a moving cart by applying left or right forces.

The state space consists of four continuous variables: cart position, cart velocity, pole angle, and pole angular velocity.

$\mathrm{The\; episode\; terminates\; when\; the\; pole\; falls\; beyond\; a\; certain\; angle,\; or\; the\; cart\; moves\; out\; of\; bounds.\; A\; reward\; of\; +1\; is\; given\; for\; every\; time\; step\; the\; pole\; remains\; balanced,\; encouraging\; the\; agent\; to\; keep\; the\; pole\; upright\; for\; as\; long\; as\; possible. }$

$\mathrm{CartPole\; is\; ideal\; for\; testing\; policy-based\; algorithms\; like\; the\; Cross\; Entropy\; Method\; due\; to\; its\; simple\; dynamics,\; dense\; reward\; structure,\; and\; low-dimensional\; observation\; space.<br>}\mathrm{<br><b><span\; style="color:\; red;\; font-size:\; medium;">3.\; Implementation</span></b><br>}\mathrm{<br>}\mathrm{The\; main\; highlights\; of\; the\; code\; are:}$

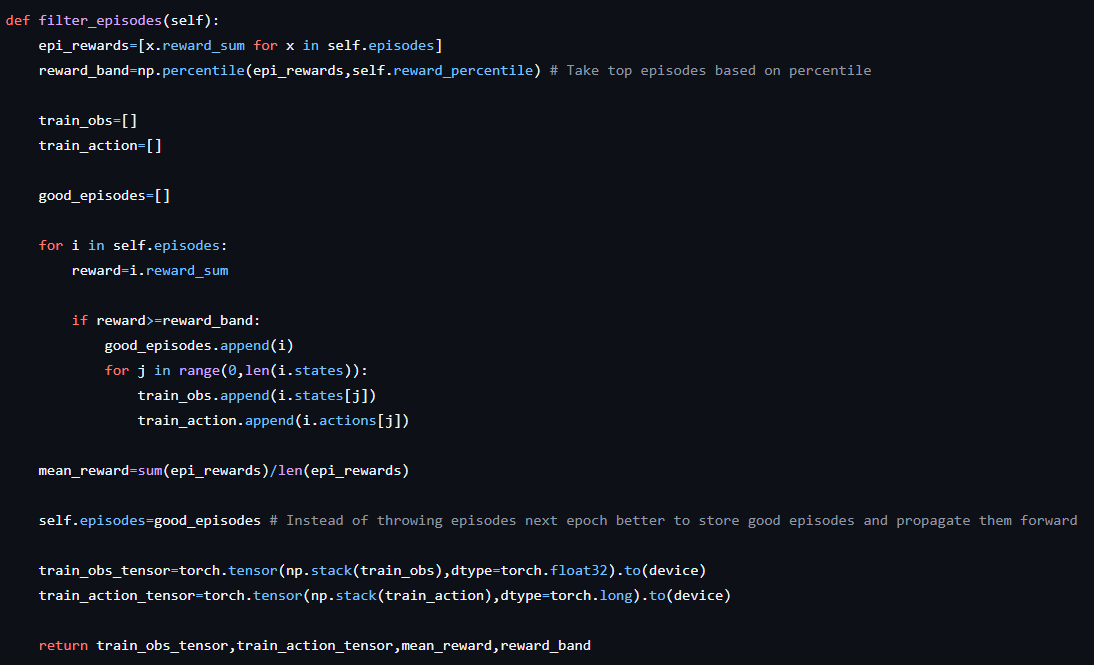

1. The Network: A simple 2 linear layer network has been used. Output of the last layer is passed through Softmax to get the probability distribution of the actions.

2. Play N Episodes: Play around 50 episodes and store them in the experience replay. This has been explained in the previous blog for DQN.
3. Filtering: Use the experience replay buffer and the accumulated reward for each episode and throw away all the episodes with a reward below the boundary that is 92nd percentile in this case.





4. Training: Train on the remaining episodes and continue this process of playing and training till the specified number of epochs is reached. (50 epochs in our case).

$\mathrm{The\; code\; can\; be\; found\; in\; this\; repository.\; I\; have\; tried\; my\; best\; to\; make\; it\; as\; clear\; as\; possible,\; so\; that\; the\; theory\; can\; be\; closely\; followed.}$

$\mathrm{<a\; href="https://github.com/Mandred009/RL\_Concepts/blob/main/cross\_entropy\_method.py"\; target="\_blank">Code:\; Cross\; Entropy\; Method</a>}$

$\mathrm{It\; takes\; around\; 180\; min\; for\; 50\; epochs\; on\; my\; GTX\; 1650\; card.}$

$\mathrm{<b><span\; style="color:\; red;\; font-size:\; medium;">4.\; Conclusion</span></b>}\mathrm{<br>}$

CEM in reinforcement learning is a powerful episodic method where learning is guided by selecting and imitating high-reward episodes.

This makes it a great baseline for discrete-action environments like CartPole, and a valuable teaching tool for understanding how reward-driven filtering can shape policy learning—without ever computing gradients through reward functions. Thank You and Stay Tuned.
